Product Summarize

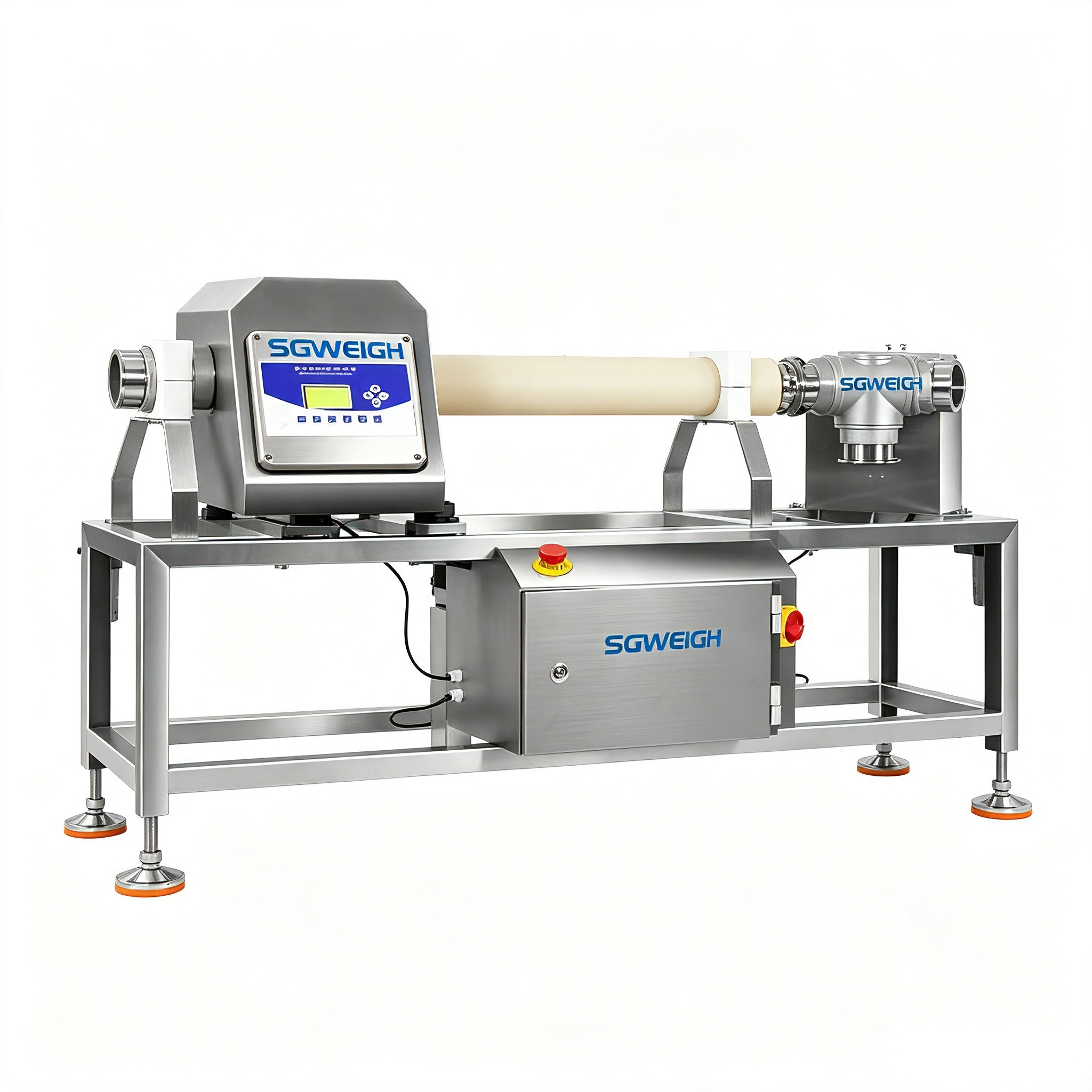

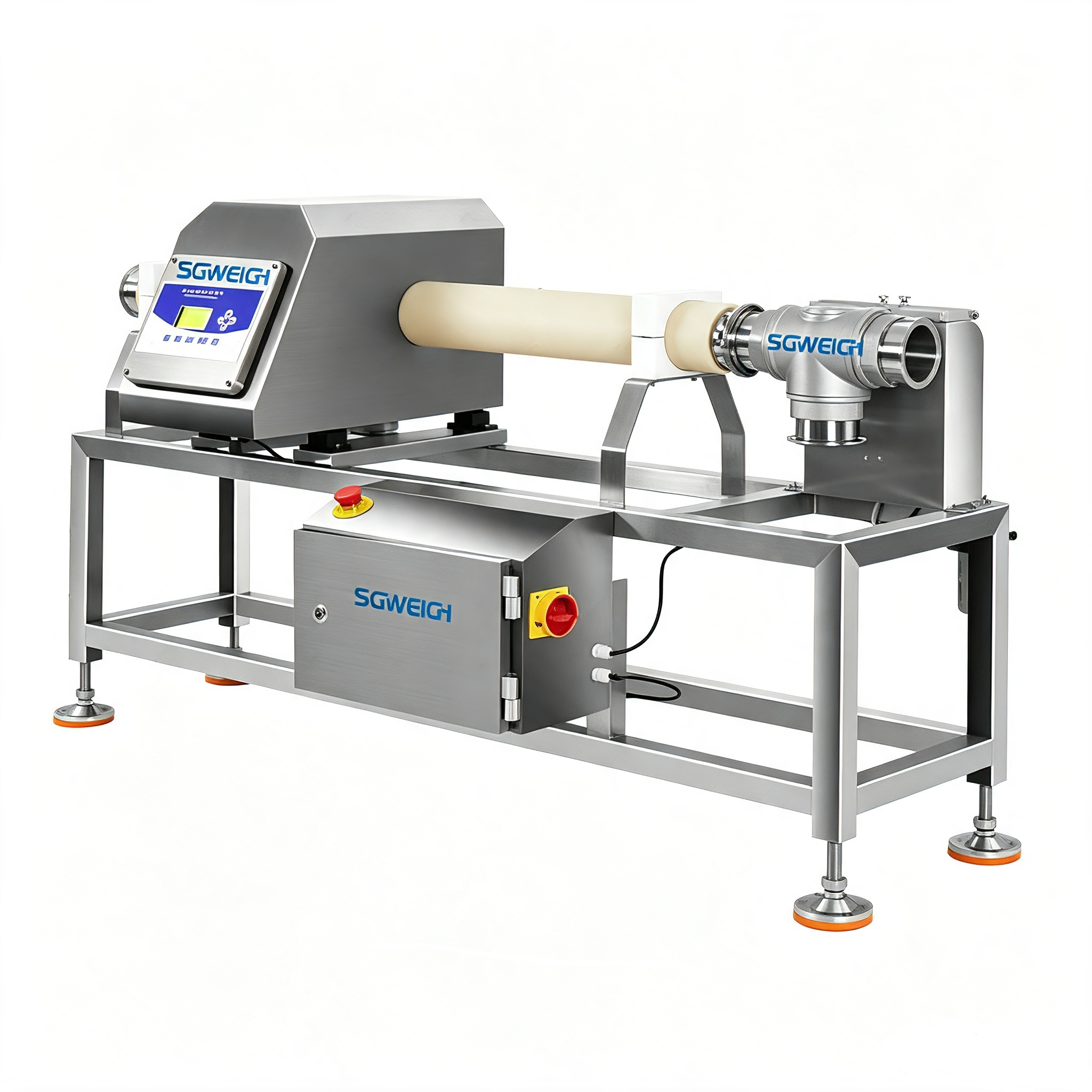

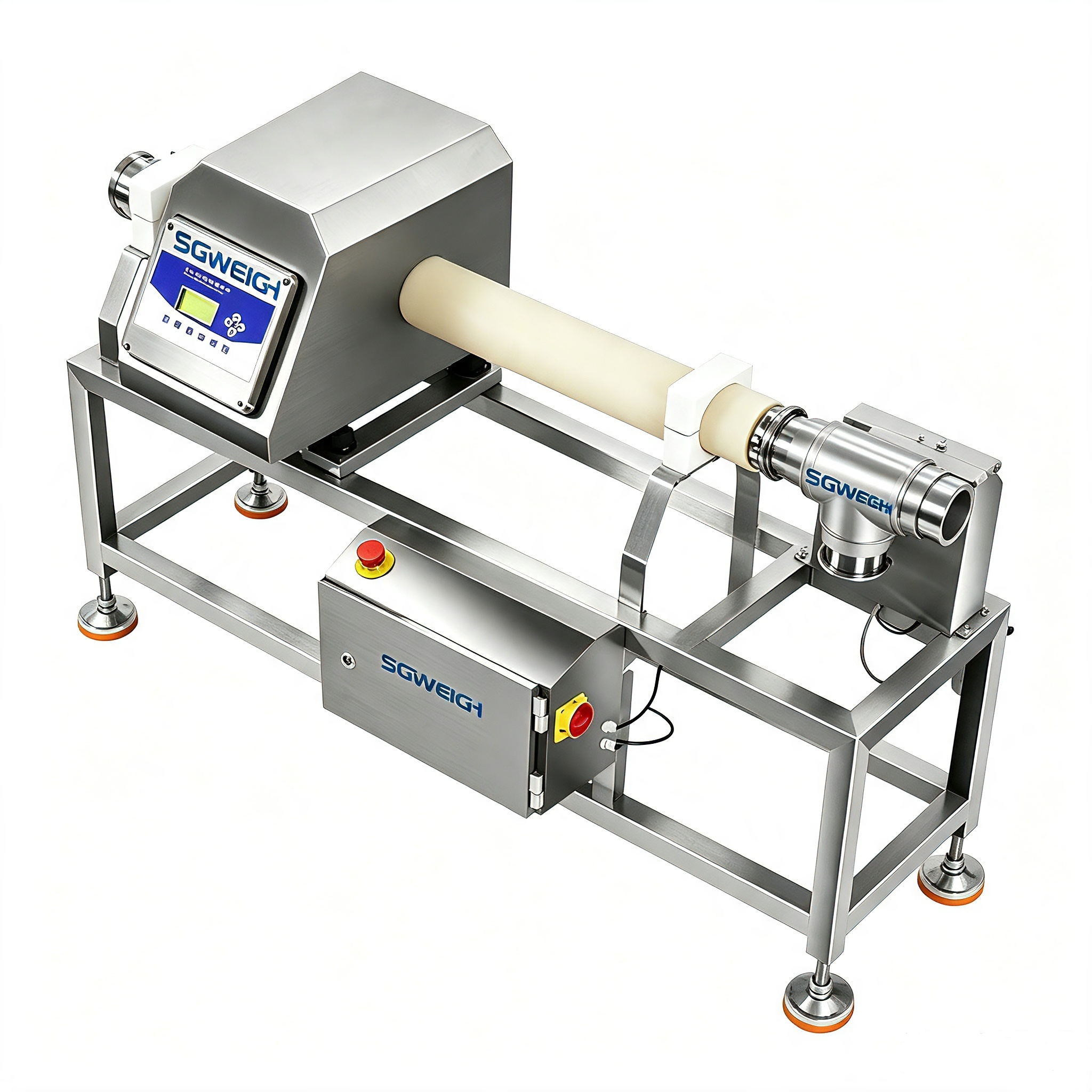

Metal Detector Machine- Sauce Juice Fluid are mainly used in the food industry. SG-ML400 Pipeline Liquid Metal Detector Machine are suitable for inspecting all liquids, pastes and slurries and are capable of detecting all types of metallic contaminants.Welcome to consult for quotation information !
Product Parameter
Model: SG-ML80/SG-ML100/SG-ML150/SG-ML200
Tube inner diameter: 80/100/150/200
Detection sensitivity: Fe (Φ)-0.6/0.8/1.0/1.0
SUS304 (Φ): 1.2/1.5/1.5/2.0
Pipeline flow (t/h): 2/4/8/15
Machine weight: 120kg/140kg/160kg/180kg
Power supply: AC220V (optional)
Product preset quantity: 100 kinds
Detected product form: powder, small particles, liquid, paste
Air source requirement: ≥0.5MPA
Alarm mode: detect metal, alarm and automatically remove
Main material: SUS304
Pipe material: PP
Product Characteristics
1. Use advanced DSP technology and leading intelligent algorithms to improve detection capabilities. Improve sensitivity and promote machine stability.
2. Designed to detect and separate metal contaminants in pumped, liquid and pasty products.
3. LCD display, English operation menu.
4. The automatic learning function helps automatically select appropriate working parameters according to different products.
5. Use quick calculation values according to different product characteristics to ensure reliable removal of pollutants.
6..Easy to integrate into piping systems via quick connectors.
7. High sensitivity.
8. Made of stainless steel, with good waterproof performance.
9. Through compact structural design, it has the advantage of small space occupation, which is conducive to integration in narrow sites.

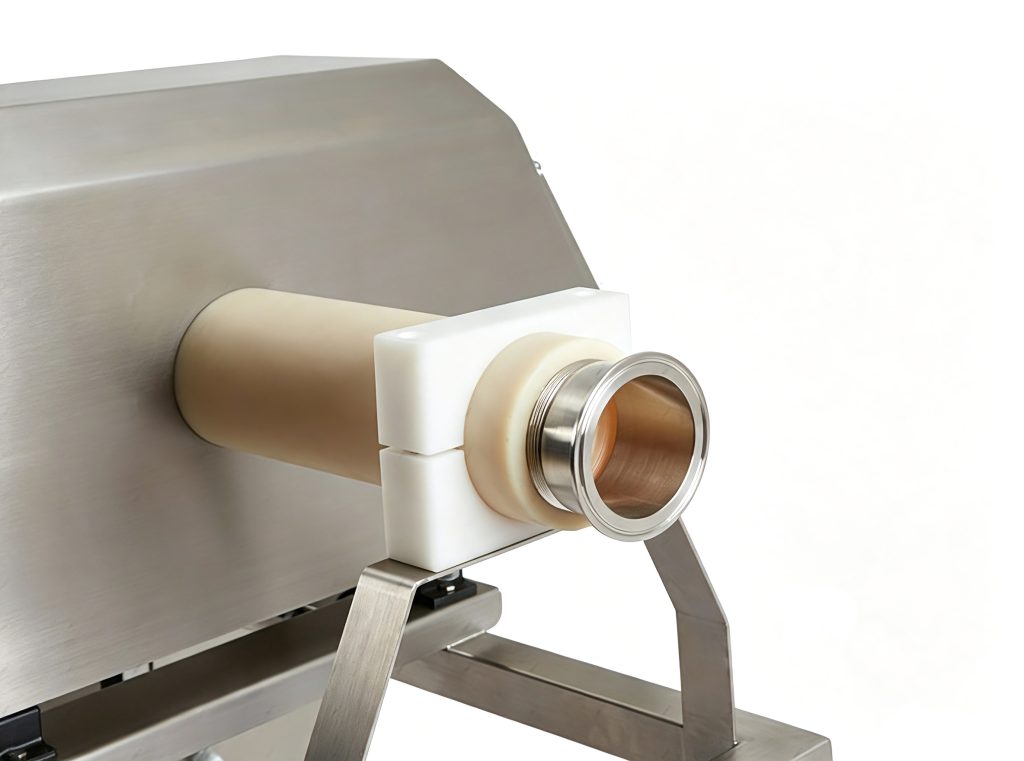

3. The clamp is used to connect the front and rear production lines, and it can be quickly installed into any existing pipeline system of the production enterprise, which is convenient and fast.
6. Made of stainless steel (SUS304) material, simple structural design, hygienic, easy to clean, corrosion-resistant, and in line with HACCP, FDA and other requirements.
Specific Application
Company Profile
Customer Visit
Exhibition
Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
After Sale Service
A. Pre -sale:
1. In accordance with the customer’s requirements, the customer quotes the customer, and the customer has special requirements for timely recording feedback;
2. Sign a standardized product order contract, clarify responsibilities and other related matters;
3. Provide free warranty for one year, lifelong maintenance service, and be responsible for debugging the product before delivery;
B. After -sales:
1. If the customer’s product fails, the problem will be solved for you as soon as possible
2. During the warranty period, the product maintenance is free. It exceeds the warranty period and can also provide maintenance. If the accessories are replaced, the product accessories are provided at the cost price.
