Product Overview

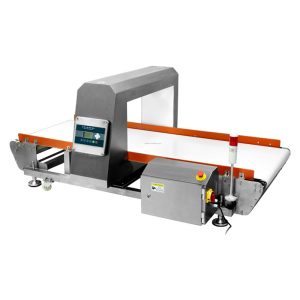

SG-M400 High Sensitivity Auto-set Tunnel Metal Detector for Fast Food is an all-metal detector that can detect all common metal impurities in the food processing industry. The product has stable performance, high cost performance and beautiful appearance, and is well received by the users.Welcome to consult for quotation information !
Product Parameter
SG-M400
Detection sensitivity: in empty state
H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm
Effective detection hole width: 150-1000mm customized according to requirements
Effective detection hole height: 80-500mm customized according to requirements
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED falt key input
Machine weight: about 120kg
Power requirements: AC220V 50HZ
Power: 200W
Alarm mode: metal detection, alarm belt stop or automatic removal
Dimensions: about L1500×W850×H950mm
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
Product Characteristics
1) Used to detect magnetic and non-magnetic metals.
2) Suitable for bulk materials and packaging materials.
3) Conveyor belt delivery system.
4) Rejection method: If metal foreign matter is found, the belt will stop, and a buzzer will sound or it will be automatically removed.
5) Wide range of width, length and height for flexible selection.
6) Clean design, easy to clean.
7) Provide multiple solutions based on your operations, standards and food safety levels.
Specific Application
Food, medicine, aquatic products, toys, clothing, shoemaking, chemical, leather, knitting, printing and other industries detect metal impurities mixed in products or raw materials during the production process. Such as: iron, non-magnetic metal objects (gold, silver, copper, aluminum, stainless steel and other non-ferrous metals can be detected).
Company Profile
Customer Visit
Exhibition
Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
