Product Overview
Pharmaceutical Metal Detectors provide fully integrated inspection and rejection solutions for manufacturers of tablets, capsules and pills. Their compact footprint and low profile design allow them to take up less space in your factory and feature rugged, quality construction for long-term reliability.Contact us for a specific quote!
For Tablets and Capsules | Metal Detection Systems

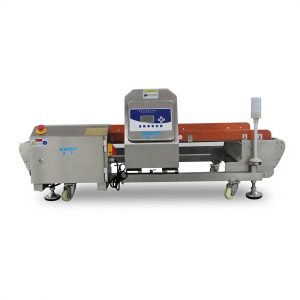

Metal Detectors for Tablets and Capsules
Product Parameter
Type:SG-M50
Feed port height and size: Height: 770-930mm Feed port size: 76mm
Height and size of outlet: Height: 770-860mm Size of outlet: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
Standard Features
1.High Grade Stainless Steel Construction for low cost maintenance and high performance.
2.Fast and efficient detection and rejection with minimum wastage.
Can be installed at critical points to have full compliance with FDA norms.
3.Easy to assemble and dismantle the parts in contact with products.
4.Anti-static food grade material Chute and pipe.
5.Non- reactive to product properties and does not interact with the product making it safe to flow through.
6.Very quick reaction to contaminated product, Quick detection and rejection.
7.Compatible with all major tablet Press machines.
Scope of Application
Customer Visit
Exhibition
Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Kindly Reminder
Please tell us the following information while you send us an inquiry. Base on your message, we will suggest the optimum solution to you for reference.Thank you.
-
- What product?
- Product weight?
- Product size?
- Speed requirement?
- Other requirement?
