Product Introduction

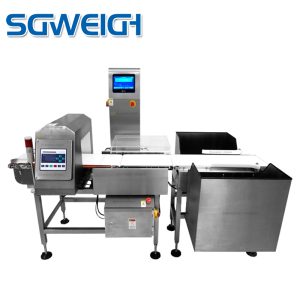

The Multifunctional Automatic Weighing Machine Metal Detector Combination is a device specially designed for online inspection. It can simultaneously achieve precise control of product weight and detection of metal foreign matter, and automatically remove products with unqualified weight and foreign matter from the production line.Welcome to consult for quotation information!
Technical Parameters
Model: SG-JS150
Measuring method: electromagnetic induction / digital load cell
Size: 330×150mm
Accuracy: FE0.8mm SUS2.0mm
Selection accuracy: ±0.1g
Weighing range: 5 grams – 900 grams
Passing height: 110m
Pass width: 280mm
Packaging length: ≤300mm
Display graduation value: 0.1g 0.2g 0.5g 1g
Number of sorting segments: 3 segments
Sorting ability: 60 times/min
Conveyor belt speed: 10-45 m/min
Ground height: 735mm—800mm
Working temperature: 0-40℃
Weight: about 160kg
Dimensions: 1900mm×700mm×1120mm (L×W×H)
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
Main Features
1. It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate. It can save production line space to the maximum extent and achieve more quality control.
2. Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3. All stainless steel shock-absorbing structure design and manufacture, to ensure long-term stability and service life.
4. Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
5. The low-power design and fully sealed design ensure the protection effect with the body structure, reaching the IP65 protection level and a service life of more than 15 years.
Application
Our Company
Our Customers
Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
After Sale Service
1.The products are real enough
Our company’s goods are never faked, and each product is genuine, and we will tell you honestly, please rest assured to buy.
2.Integrity is high enough
Our company sincerely serves everyone and is a trustworthy businessman.
3. After-sale service is strong enough
Strictly implement the three-guarantee service, and the products sold can provide replacement and one-year warranty service due to their own quality problems (not human-made).
4.Entity management
Welcome to the company to trade, our company can sign a sales contract!
