Product Introduction

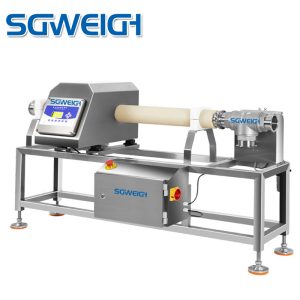

Factory Supply High Sensitivity Automatic Flowing Products Pipeline Metal Detector is a special metal detection equipment, mainly used to detect metal foreign matter in fluids or granular materials. This kind of equipment is usually installed on the conveying pipeline. When the material passes through the detection area, if there is any metal foreign matter, it will be detected and automatically removed from the production line.
Technical Parameters
Model: SG-ML80/SG-ML100/SG-ML150/SG-ML200
Tube inner diameter: 80/100/150/200
Detection sensitivity: Fe (Φ)-0.6/0.8/1.0/1.0
SUS304 (Φ): 1.2/1.5/1.5/2.0
Pipeline flow (t/h): 2/4/8/15
Machine weight: 120kg/140kg/160kg/180kg
Power supply: AC220V (optional)
Product preset quantity: 100 kinds
Detected product form: powder, small particles, liquid, paste
Air source requirement: ≥0.5MPA
Alarm mode: detect metal, alarm and automatically remove
Main material: SUS304
Pipe material: PP
For reference only, please consult for details!
Contact us to recommend a product that is suitable for you!
Main Features
1. Our metal detectors are very easy to integrate into piping systems due to the use of quick-lock joints.
2. Due to their practical, sturdy and hygienic stainless steel design and high protection level, they are particularly easy to clean.
3. They have high sensitivity to all metals.
4. The clamp is used to connect the front and rear production lines, and it can be quickly installed into any existing pipeline system of the production enterprise, which is convenient and fast.
5. Made of stainless steel (SUS304) material, simple structural design, hygienic, easy to clean, corrosion-resistant, and in line with HACCP, FDA and other requirements
Application
Our Company
Our Customers
Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
