Product Summarize

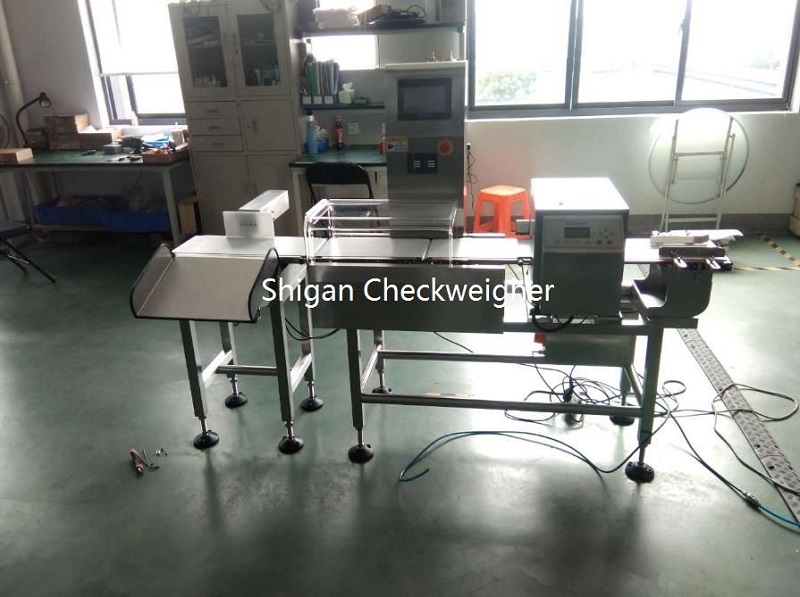

Automatic Metal Detector Combination Checkweigher is mainly composed of a metal detection system, a checkweighing system and a rejection device. The metal detection and weighing are integrated, easy to operate, save space, and have powerful functions.Checkweigher & Metal Detector Combination Systems uses high-speed digital signal processing devices and intelligent algorithms to improve detection accuracy and stability.Welcome to consult for quotation information!
Product Parameter
Model: SG-JS150
Detection hole width: 150mm
Detection hole height: 100-200mm
Detection sensitivity:
H-100mm: Fe≥Φ0.8mm,SUS≥Φ1.2mm
H-120mm: Fe≥Φ0.8mm,SUS≥Φ1.8mm
H-150mm: Fe≥Φ1.2mm,SUS≥Φ2.0mm
H-200mm: Fe≥Φ1.5mm,SUS≥Φ2.5mm
Effective detection hole width: 150mm
Effective detection hole height: 100-200mm
Weighing range: 5-500g
Weighing accuracy: ±0.1g(Depends on products)
Conveyor belt height: 750mm (±50mm)
Conveying capacity: 10Kg/time
Delivery direction: from left to right
Maximum speed of conveyor belt: 25m/min
Conveyor belt material: food grade PU belt
Protection class: IP65
Display and operation mode: LED LCD flat button input
Machine weight: 240kg
Power requirements: AC220V 50HZ
Power: 300W
Dimensions: about L2267×W589×H1500mm (final design shall prevail)
Product Characteristics
1. It has an ingenious structure, takes up less space, is easy to connect to the production line, has high detection sensitivity and is easy to operate. It can save production line space to the maximum extent and achieve more quality control.
2. Advanced technology, applying the latest multi-frequency detection technology, automatic material effect elimination technology, automatic balancing technology, and adaptive adjustment technology, bringing the equipment the simplest operation, the best environmental suitability and stability in the industry.
3. All stainless steel shock-absorbing structure design and manufacture, to ensure long-term stability and service life.
4. Can record detection parameters suitable for 100 different products, avoiding detection errors due to manual differences and avoiding downtime for product replacement.
5. The low-power design and fully sealed design ensure the protection effect with the body structure, reaching the IP65 protection level and a service life of more than 15 years.
Specific Application
Company Profile
Customer Visit
Exhibition
Packaging&Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
After Sale Service
1.Product quality commitment
(1).There are quality records and testing data for the manufacture and testing of products.
(2).For the inspection of product performance,we sincerely invite users to inspect the whole process and performance of the product in person.After the product is confirmed to be qualified,it will be packaged and shipped.
2.the product price commitment
Under the same competitive conditions, our company will sincerely provide you with a preferential price on the basis of not reducing the technical performance of the product or changing the product components.
3. Delivery time commitment
Product delivery time: as far as possible according to user requirements,if there are special requirements, it needs to be completed in advance,and strive to meet user needs.
